Collapsible Rigid Box Printing
Collapsible rigid boxes use a panel arrangement that opens into a presentation case and folds into a flatter shipping form.
- Flat-packed rigid panels, hinges and specified corner attachment
- Rigid shell and printed wrap
- Packing-line assembly
Start with the intended use, finished size and quantity. The material and construction can follow.
The product in use
Rigid panels that assemble from a compact storage form
Flat-packed panels reduce storage footprint before assembly. The buyer must weigh that convenience against corner attachment, packing-line setup and the space occupied by the erected insert and contents.
What makes up the finished product?
- Folding rigid panels
- Board panels connect through hinges and corner attachments so the pack can be shipped flatter and erected for use.
- Erection sequence
- Define how the corners lock or attach, then test setup and closure with the intended packing workflow.
- Contents fit
- The cavity and insert position the actual contents; outside dimensions describe the finished pack.
Specifications and materials
Collapsible Rigid Box Printing specifications
Use these reference options to build the project brief. Dimensions are design examples; material availability, tooling and production timing depend on the confirmed specification.
| Parameter | Reference or option | Why it matters |
|---|---|---|

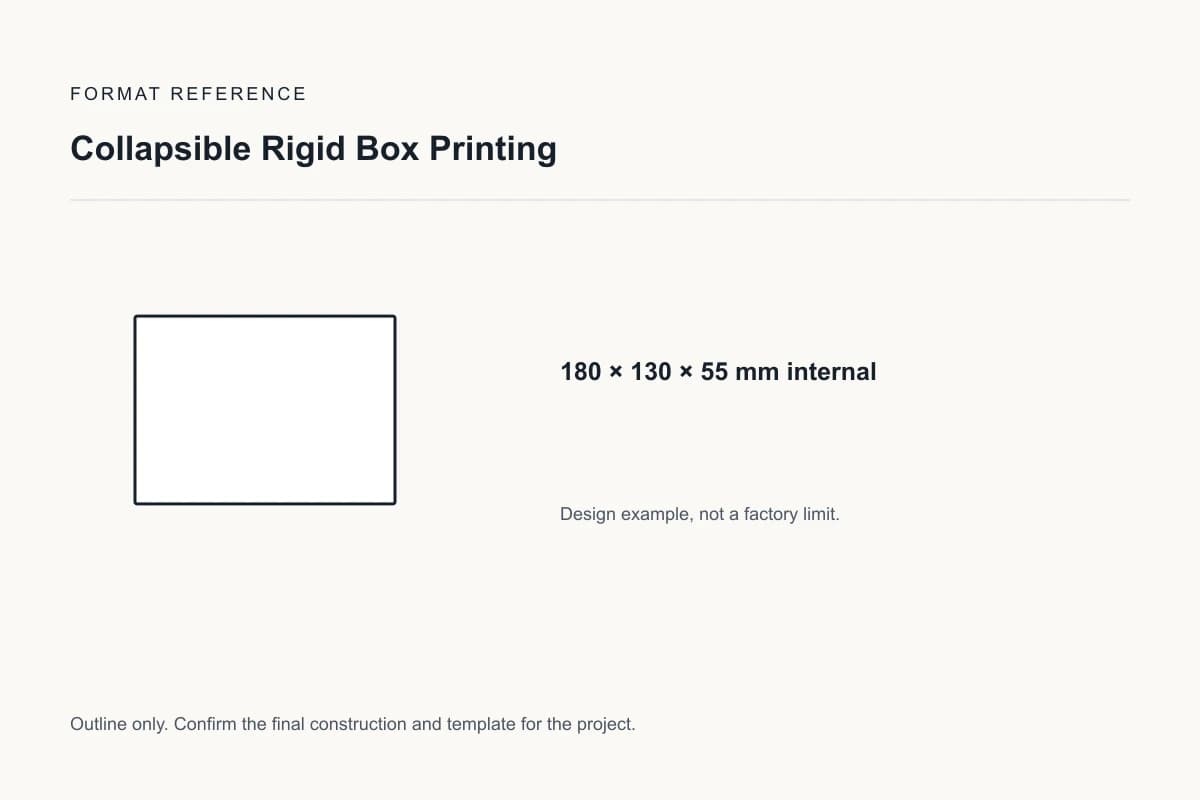

| Finished dimensions | 180 × 130 × 55 mm internal | This erected-size example does not describe the flat shipping footprint. Design reference, not a factory limit. |
| Assembly format | Flat-packed rigid panels, hinges and specified corner attachment | Reduced storage volume must be balanced against the required packing-line assembly. |
| Dimension basis | Inside cavity and outside finished dimensions, with the order of length × width × height | The packed product must fit the usable cavity, not merely the stated outside size. |
| Contents and insert | Actual item dimensions and mass; cavity, divider or retention requirements | Trial insertion and removal using the real contents before approving the structure. |
| Material construction | Rigid shell and printed wrap or Material wrap and lining | Compare the actual grade and construction. Inspect a fully wrapped box, including the inner corners and lid fit. |
| Format and order unit | complete packs per structure, size and artwork version | List components and versions separately so quantities refer to the same finished unit. |
| Finishing choice | A collapsible design can reduce stored volume, but its real freight benefit depends on the flat pack and carton count. | Approve the proposed material and process combination on an appropriate sample. |
Compare the material and its effect.
Choose the surface and construction for the way the finished product will be used. The options below are selection references, not a guaranteed inventory list.
Rigid shell and printed wrap
Greyboard shell with separately specified cover paper
Board forms the shape; the wrap carries artwork and folds over its edges. Board thickness and wrap seams both affect usable space.
Sample check: Inspect a fully wrapped box, including the inner corners and lid fit.
Material wrap and lining
Cloth, specialty paper or printed lining where appropriate
A textured exterior changes foil detail and rub behavior. Linings and inserts reduce the cavity available for the contents.
Sample check: Evaluate the actual wrap, decoration and lining as one assembled sample.
Selected sample focus — Rigid shell and printed wrap: Inspect a fully wrapped box, including the inner corners and lid fit.
Format & usable space
Erected Size vs. Flat-Pack Footprint
180 × 130 × 55 mm internal
This erected-size example does not describe the flat shipping footprint.
This is a design reference, not a required size or a manufacturing limit.
Assembly format
Flat-packed rigid panels, hinges and specified corner attachment
Reduced storage volume must be balanced against the required packing-line assembly.
Compare erected space with flat-packed volume
A collapsible structure ships as a flatter arrangement of panels and is erected at the packing line. The shipping footprint, corner attachment and assembly effort belong in the specification alongside the finished cavity.
- Two size records
- Record the erected internal size and the actual flat-packed outside dimensions separately.
- Assembly
- Document corner attachment and the order of setup steps, then test with the intended packing team.
- Shipping comparison
- Compare actual packs per carton and handling effort; a flatter box does not by itself establish a freight saving.
Why board caliper and GSM are separate specifications
Caliper measures thickness; grammage measures mass per area. Neither alone approves a finished box. Grade, panel span, wrap and assembly affect the structure.
| Board caliper | Published grammage |
|---|---|
| 1.50 mm | 945 g/m² |
| 2.00 mm | 1,260 g/m² |
| 2.50 mm | 1,575 g/m² |
Box specification notes
Enter values from your equipment guide or product measurements. Copy the notes into your inquiry; this tool records a brief and does not calculate a production limit or approve fit.
Review and copy your specification notes
View the original format reference
Surface finish options
Exterior printed panels or wrap
Discuss film, selective gloss and metallic accents on the exterior. Keep glue areas clear and avoid hinges, seams and creases unless tested. For relief, confirm the wrap or board construction, reverse-side effect and tooling separately.
Matte lamination View effect & artwork guidance
Spot UV View effect & artwork guidance
Gold foil stamping View effect & artwork guidance
Embossing View effect & artwork guidance
Illustrative finish samples, not photographs of this product. Final suitability follows the confirmed stock, construction and approved sample.
Compare all surface finishes
Details that change the finished product
Inspect the structure, wrap and contents fit
Review both the flat pack and erected box
Evaluate the erected cavity and the flattened dimensions separately. Test the assembly sequence with the intended user rather than only inspecting a finished box.
Assembly format
Reduced storage volume must be balanced against the required packing-line assembly. A structural sample checks fit, opening, erection and the insert with the actual contents.
Surface and finishing compatibility
A collapsible design can reduce stored volume, but its real freight benefit depends on the flat pack and carton count. Board forms the shape; the wrap carries artwork and folds over its edges. Board thickness and wrap seams both affect usable space. Inspect a fully wrapped box, including the inner corners and lid fit.
Packing-Line Assembly & Compact Box Storage
Packing-line assembly
Provide erection instructions and test the corner attachment at the point of packing.
Space-conscious storage
Compare the delivered flat configuration with the assembled cavity and lid fit.
Solve the risk before production
Check Corner Attachment & the Assembly Sequence
The critical finished-product check
Corners can release when the attachment is weak or assembled in the wrong sequence. Validate the specified attachment method and provide a clear assembly guide.
Repeated folding damages the hinge
Why it happens: A wrapped rigid panel is expected to bend outside its designed hinge zone.
Fix and check: Fold only at the planned joints and validate the intended assembly and storage cycle.
When to choose another format
Collapsible Shells, Assembled Rigid Boxes & Cartons
| Alternative | Use and trade-off |
|---|---|
| Rigid Box Printing | A permanently assembled shell removes the setup step and takes more storage space. |
| Folding Carton Printing | A paperboard carton folds by creases rather than rigid panels and flexible joints. |
Sample and approval
Test the Flat-Packed Box through Full Assembly
Free samples are available, with preparation completed within 15 days. Confirm the sample scope; courier arrangements and transit time are separate.
Structural sample
Checks dimensions, fit and assembly using unprinted or representative materials. It does not establish final color.
Printed proof
Checks text, image reproduction and artwork on the agreed proof medium. It may not reproduce final assembly or every finish.
Complete finished sample
A structural sample checks fit, opening, erection and the insert with the actual contents.
From brief to delivery
Order Details for Collapsible Rigid Box Printing
Build and approve the order in five steps
Send the project brief
Send erected cavity, flat-pack limit, assembly method and pack quantities. Include finished dimensions, quantity by version, destination and required arrival date. If a configuration is undecided, describe the intended use.
Compare the quoted configuration
Compare the same quantity basis: complete packs per structure, size and artwork version. Check that the quote identifies materials, finishing, included components, sample scope, packing and freight.
Approve the appropriate sample
A structural sample checks fit, opening, erection and the insert with the actual contents. A print proof checks artwork and color; a complete finished sample also checks assembly. Record what the selected sample does and does not reproduce.
Confirm files and release production
Approve the final artwork revision and the assembly format specification. Record the agreed quantity, payment conditions, packing and production schedule in the order.
Confirm packing and dispatch
State flat or erected delivery, inserts per box, protection between finished surfaces and carton counts. Confirm production completion and transit as separate dates, using the delivery destination and required arrival date.
- Use the approved vector dieline at 1:1 scale, with cut, crease and glue areas on separate named layers. Mark inside and outside dimensions explicitly.
- Extend edge-to-edge trim artwork by 3 mm unless the approved template specifies a different bleed. Use approximately 300 effective ppi for continuous-tone images at their placed size; keep fine linework as vectors where possible.
Project questions
Planning Collapsible Rigid Box Printing
Should the quote use flat-packed or erected dimensions?
Provide the finished cavity and specify the supplied state. Include the packed-flat dimensions when storage or freight is important. Flat delivery and erected delivery need different packing assumptions.
How should I specify quantities and versions?
Count complete packs per structure, size and artwork version. State erected cavity, flat-pack limit, assembly method and pack quantities; components, language versions and different structures must be listed separately.
What determines the minimum quantity and delivery schedule?
The selected stock, construction, finishing, version count and sample scope determine production planning. Request quantity breaks for the same configuration and an arrival-date plan that separates sampling, manufacturing and transit. No minimum or lead time is implied by the design examples above.
Specify the finished product.
Send erected cavity, flat-pack limit, assembly method and pack quantities. Include finished dimensions, quantity by version, destination and required arrival date.
