Packaging Box Printing · Formats & construction
Folding Carton Printing
Folding cartons are printed paperboard structures delivered flat or assembled around the product.
- Straight or reverse tuck; locking or glued base as specified
- White folding paperboard
- Retail carton
Start with the intended use, finished size and quantity. The material and construction can follow.
The product in use

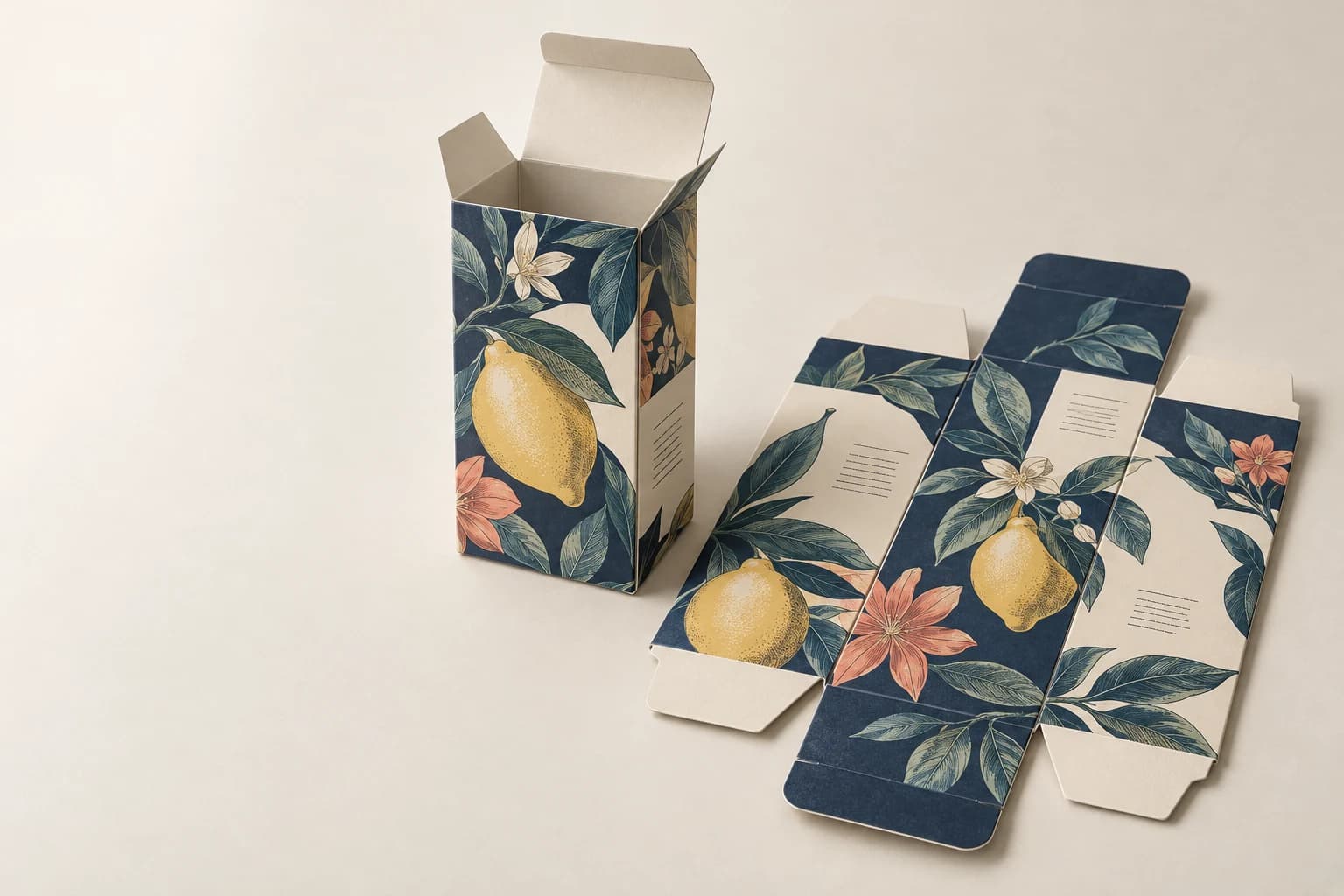

A printed paperboard blank that becomes a functional carton
A folding carton starts as a printed, cut and creased paperboard blank. Panels form the cavity, while tuck flaps, locks or glue form its closure. The flat blank stores compactly; erected stiffness and bottom behavior depend on the board and the complete structural layout.
What makes up the finished product?
- Cut and creased board
- One printed paperboard blank folds into the chosen carton cavity; grain and crease positions affect erection.
- Tuck or base closure
- Select straight tuck, reverse tuck, locking or glued base around the filling and opening process.
- Usable interior
- Board caliper, folds and any insert reduce the cavity. Test filling with the actual product before approving the dieline.
Specifications and materials
Folding Carton Printing specifications
Use these reference options to build the project brief. Dimensions are design examples; material availability, tooling and production timing depend on the confirmed specification.
| Parameter | Reference or option | Why it matters |
|---|---|---|
| Finished dimensions | 80 × 50 × 120 mm internal | This retail-carton example is a fit study; the final dieline depends on board caliper and closure. Design reference, not a factory limit. |
| Carton closure | Straight or reverse tuck; locking or glued base as specified | Closure choice changes the flat dieline, erection steps and filled-box behavior. |
| Dimension basis | Inside cavity and outside finished dimensions, with the order of length × width × height | The packed product must fit the usable cavity, not merely the stated outside size. |
| Contents and insert | Actual item dimensions and mass; cavity, divider or retention requirements | Trial insertion and removal using the real contents before approving the structure. |
| Material construction | White folding paperboard or Kraft paperboard | Compare the actual grade and construction. Inspect the fold on a printed, creased and erected sample. |
| Format and order unit | complete packs per structure, size and artwork version | List components and versions separately so quantities refer to the same finished unit. |
| Finishing choice | Spot UV or foil can emphasize a panel; heavy build at a crease can affect folding. | Approve the proposed material and process combination on an appropriate sample. |
Compare the material and its effect.
Choose the surface and construction for the way the finished product will be used. The options below are selection references, not a guaranteed inventory list.
White folding paperboard
Coated folding boxboard, selected by caliper and stiffness
A white coated face supports printed color; crease geometry and fiber direction influence how the carton erects.
Sample check: Inspect the fold on a printed, creased and erected sample.
Kraft paperboard
Natural brown or specified white-faced kraft construction
Brown material contributes its own color to the artwork. The structure still needs the stiffness required by the filled pack.
Sample check: Compare color on the selected surface and test the filled bottom and closure.
Selected sample focus — White folding paperboard: Inspect the fold on a printed, creased and erected sample.

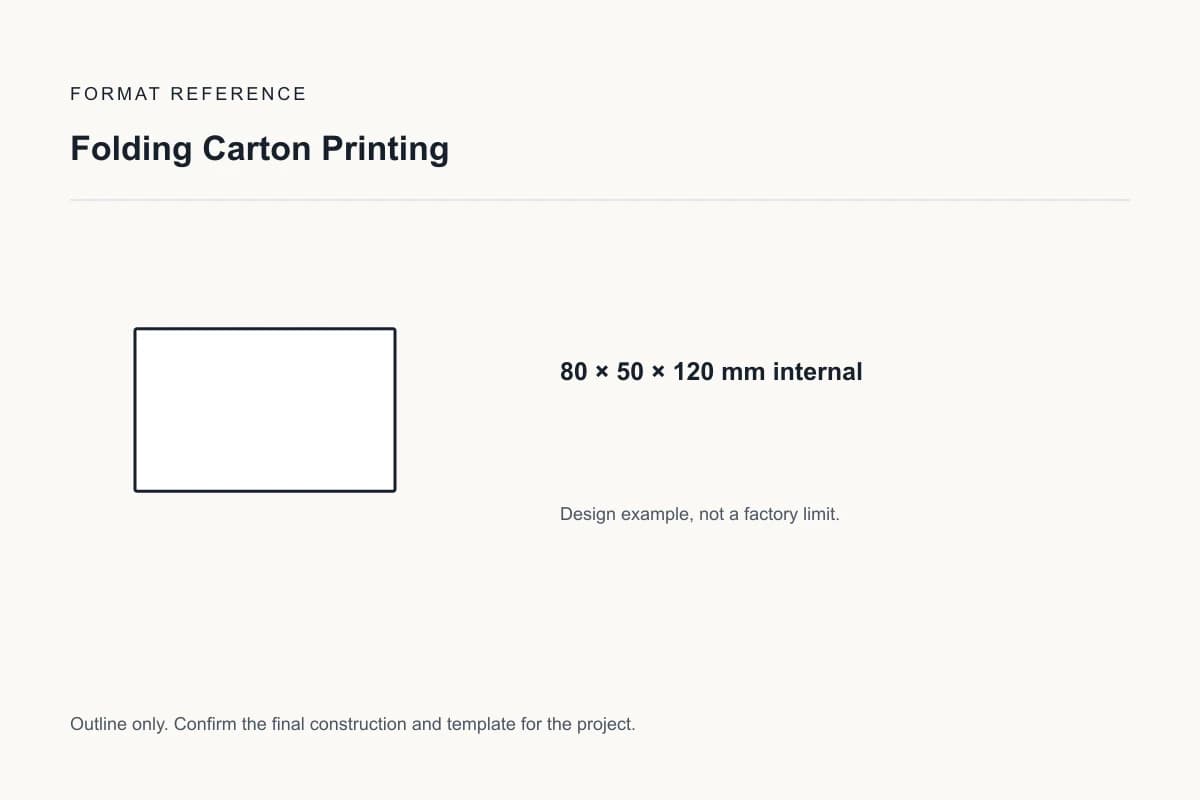

Format & usable space
Carton Cavity, Closure & Base Construction
80 × 50 × 120 mm internal
This retail-carton example is a fit study; the final dieline depends on board caliper and closure.
This is a design reference, not a required size or a manufacturing limit.
Carton closure
Straight or reverse tuck; locking or glued base as specified
Closure choice changes the flat dieline, erection steps and filled-box behavior.
View the original format reference
Surface finish options
Exterior printed panels or wrap
Discuss film, selective gloss and metallic accents on the exterior. Keep glue areas clear and avoid hinges, seams and creases unless tested. For relief, confirm the wrap or board construction, reverse-side effect and tooling separately.
Matte lamination View effect & artwork guidance
Spot UV View effect & artwork guidance
Gold foil stamping View effect & artwork guidance
Embossing View effect & artwork guidance
Illustrative finish samples, not photographs of this product. Final suitability follows the confirmed stock, construction and approved sample.
Compare all surface finishes
Details that change the finished product
Inspect the structure, wrap and contents fit
Choose a closure that suits the filling line
Choose board stiffness and crease behavior together. Keep artwork and finishes out of glue areas and use the approved cut-and-crease template.
Carton closure
Closure choice changes the flat dieline, erection steps and filled-box behavior. A structural sample checks fit, opening, erection and the insert with the actual contents.
Surface and finishing compatibility
Spot UV or foil can emphasize a panel; heavy build at a crease can affect folding. A white coated face supports printed color; crease geometry and fiber direction influence how the carton erects. Inspect the fold on a printed, creased and erected sample.

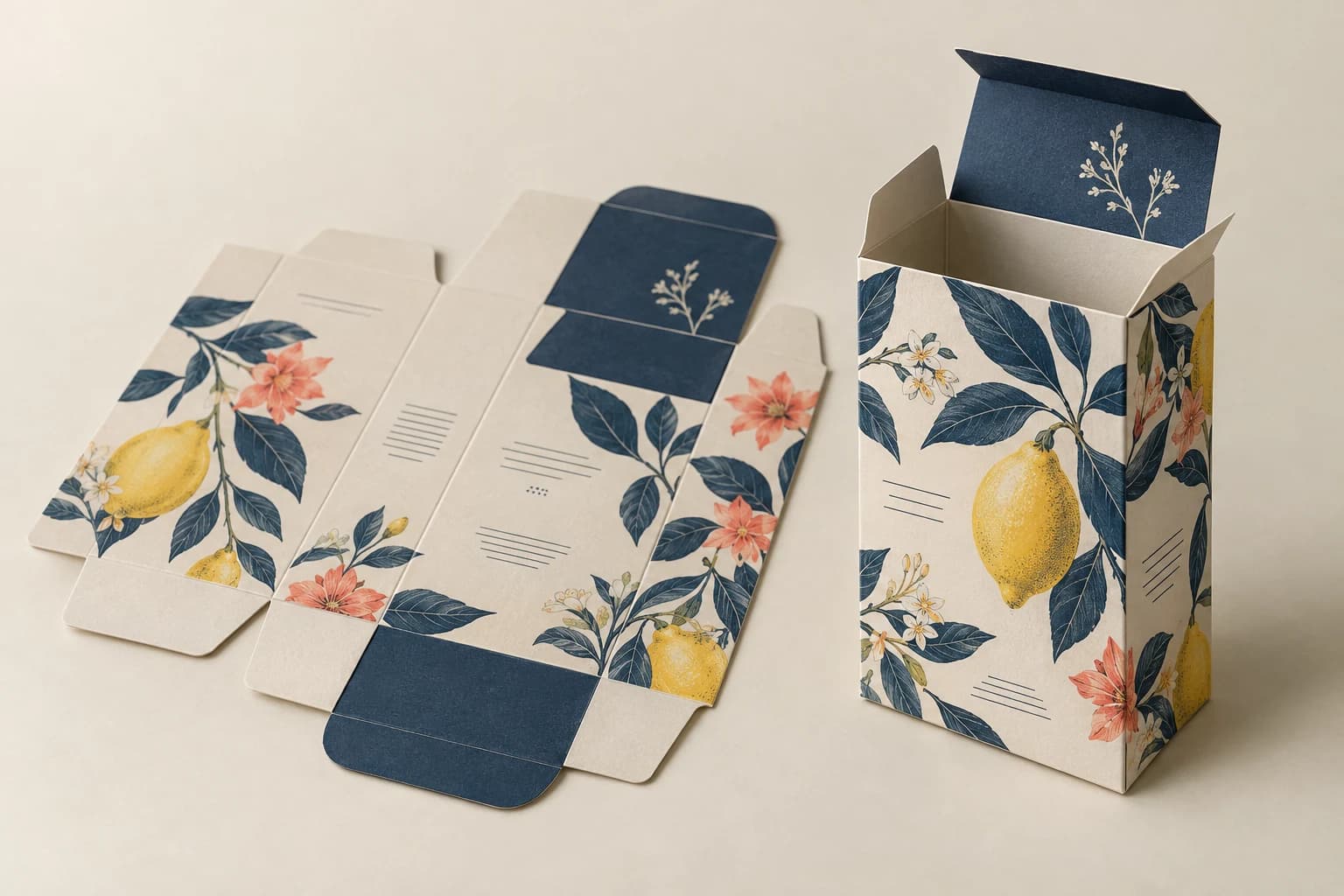

Retail Cartons & Packs with Inserts
Retail carton
Choose the tuck and base around manual or automated filling.
Carton with insert
Review the insert and product fit together before laying out the print file.
Solve the risk before production

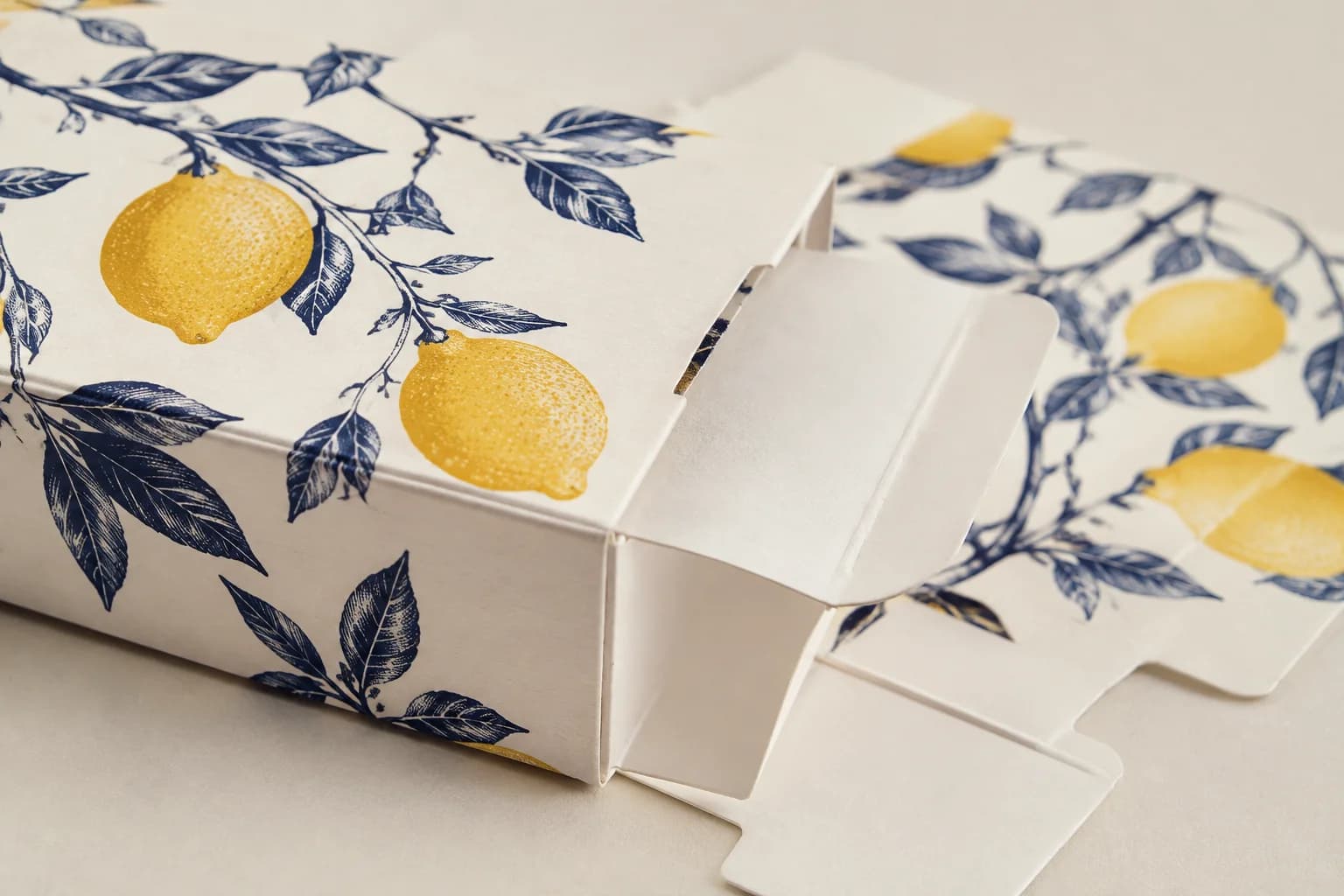

Check Crease Cracking & Filled-Carton Assembly
The critical finished-product check
A printed fold can crack when tooling, grain and board coating are poorly matched. Review an erected sample and adjust the crease system before producing the full run.
The filled bottom opens
Why it happens: The closure is selected by appearance without accounting for the contents and handling.
Fix and check: Trial the actual packed weight with the proposed locking or glued bottom.
When to choose another format
Folding Cartons, Rigid Boxes & Kraft Structures
| Alternative | Use and trade-off |
|---|---|
| Rigid Box Printing | A wrapped rigid shell offers another presentation and storage form without the same erection folds. |
| Kraft Box Printing | A kraft surface changes color reproduction; specify solid or corrugated construction separately. |
Sample and approval
Check the Erected Carton with Its Actual Contents
Free samples are available, with preparation completed within 15 days. Confirm the sample scope; courier arrangements and transit time are separate.
Structural sample
Checks dimensions, fit and assembly using unprinted or representative materials. It does not establish final color.
Printed proof
Checks text, image reproduction and artwork on the agreed proof medium. It may not reproduce final assembly or every finish.
Complete finished sample
A structural sample checks fit, opening, erection and the insert with the actual contents.
From brief to delivery
Order Details for Folding Carton Printing
Build and approve the order in five steps
Send the project brief
Send contents fit, board reference, closure and flat or assembled supply. Include finished dimensions, quantity by version, destination and required arrival date. If a configuration is undecided, describe the intended use.
Compare the quoted configuration
Compare the same quantity basis: complete packs per structure, size and artwork version. Check that the quote identifies materials, finishing, included components, sample scope, packing and freight.
Approve the appropriate sample
A structural sample checks fit, opening, erection and the insert with the actual contents. A print proof checks artwork and color; a complete finished sample also checks assembly. Record what the selected sample does and does not reproduce.
Confirm files and release production
Approve the final artwork revision and the carton closure specification. Record the agreed quantity, payment conditions, packing and production schedule in the order.
Confirm packing and dispatch
State flat or erected delivery, inserts per box, protection between finished surfaces and carton counts. Confirm production completion and transit as separate dates, using the delivery destination and required arrival date.
- Use the approved vector dieline at 1:1 scale, with cut, crease and glue areas on separate named layers. Mark inside and outside dimensions explicitly.
- Extend edge-to-edge trim artwork by 3 mm unless the approved template specifies a different bleed. Use approximately 300 effective ppi for continuous-tone images at their placed size; keep fine linework as vectors where possible.
Project questions
Planning Folding Carton Printing
Is a folding carton the same as a rigid box?
No. A folding carton is converted from scored paperboard and is normally erected from a flat form. A rigid box uses a shape-retaining shell. Choose from the handling and presentation requirements before comparing decorative finishes.
How should I specify quantities and versions?
Count complete packs per structure, size and artwork version. State contents fit, board reference, closure and flat or assembled supply; components, language versions and different structures must be listed separately.
What determines the minimum quantity and delivery schedule?
The selected stock, construction, finishing, version count and sample scope determine production planning. Request quantity breaks for the same configuration and an arrival-date plan that separates sampling, manufacturing and transit. No minimum or lead time is implied by the design examples above.
Specify the finished product.
Send contents fit, board reference, closure and flat or assembled supply. Include finished dimensions, quantity by version, destination and required arrival date.
