Packaging Box Printing · Formats & construction
Wine Box Printing
Wine presentation packs need to locate the bottle body and neck while providing an opening that suits gifting.
- Bottle count, filled dimensions, divider and selected outer structure
- Rigid shell and printed wrap
- Single-bottle gift
Start with the intended use, finished size and quantity. The material and construction can follow.
The product in use
Bottle presentation with planned support and restraint
A wine presentation box organizes one or more filled bottles within a defined outer structure. Inserts or partitions can restrain the base, body and neck at different contact points. A gift presentation and a transit pack have different protection requirements even when they hold the same bottle.
What makes up the finished product?
- Bottle-sized shell
- Outer board and wrap surround the filled bottle count; the cavity must allow for shoulders, necks and any dividers.
- Presentation access
- Choose the opening and retention system so bottles can be removed without rubbing labels or decorative surfaces.
- Bottle support
- Position bottle bodies and necks with a tested divider or insert and check the packed weight in the finished box.
Specifications and materials
Wine Box Printing specifications
Use these reference options to build the project brief. Dimensions are design examples; material availability, tooling and production timing depend on the confirmed specification.
| Parameter | Reference or option | Why it matters |
|---|---|---|
| Finished dimensions | 100 × 100 × 330 mm internal | This single-bottle design example is not a universal bottle size; shoulders, caps and bases vary. Design reference, not a factory limit. |
| Bottle configuration | Bottle count, filled dimensions, divider and selected outer structure | A presentation finish is separate from the cushioning needed during transport. |
| Dimension basis | Inside cavity and outside finished dimensions, with the order of length × width × height | The packed product must fit the usable cavity, not merely the stated outside size. |
| Contents and insert | Actual item dimensions and mass; cavity, divider or retention requirements | Trial insertion and removal using the real contents before approving the structure. |
| Material construction | Rigid shell and printed wrap or Material wrap and lining | Compare the actual grade and construction. Inspect a fully wrapped box, including the inner corners and lid fit. |
| Format and order unit | complete packs per structure, size and artwork version | List components and versions separately so quantities refer to the same finished unit. |
| Finishing choice | Printed wraps and foil can support presentation; a shipping carton and route testing remain separate. | Approve the proposed material and process combination on an appropriate sample. |
Compare the material and its effect.
Choose the surface and construction for the way the finished product will be used. The options below are selection references, not a guaranteed inventory list.
Rigid shell and printed wrap
Greyboard shell with separately specified cover paper
Board forms the shape; the wrap carries artwork and folds over its edges. Board thickness and wrap seams both affect usable space.
Sample check: Inspect a fully wrapped box, including the inner corners and lid fit.
Material wrap and lining
Cloth, specialty paper or printed lining where appropriate
A textured exterior changes foil detail and rub behavior. Linings and inserts reduce the cavity available for the contents.
Sample check: Evaluate the actual wrap, decoration and lining as one assembled sample.
Selected sample focus — Rigid shell and printed wrap: Inspect a fully wrapped box, including the inner corners and lid fit.
Format & usable space

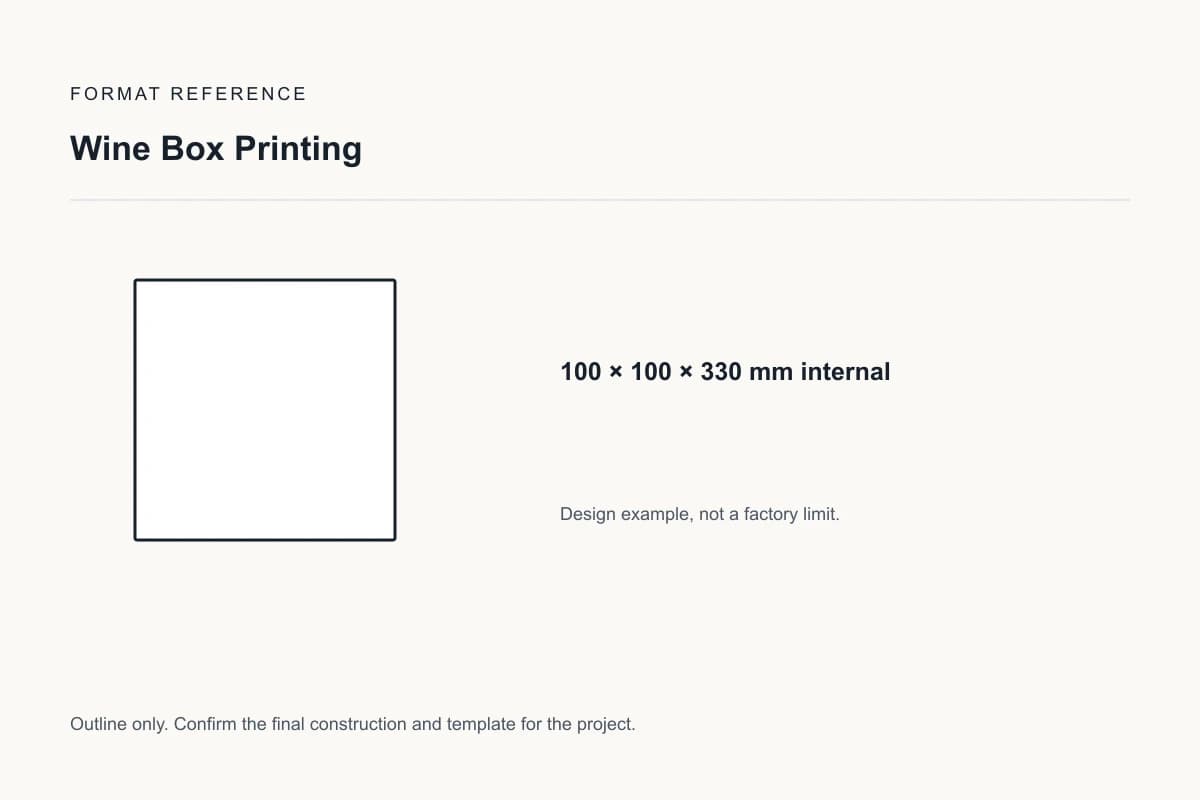

Bottle Dimensions, Box Cavity & Support Layout
100 × 100 × 330 mm internal
This single-bottle design example is not a universal bottle size; shoulders, caps and bases vary.
This is a design reference, not a required size or a manufacturing limit.
Bottle configuration
Bottle count, filled dimensions, divider and selected outer structure
A presentation finish is separate from the cushioning needed during transport.
View the original format reference
Surface finish options
Exterior printed panels or wrap
Discuss film, selective gloss and metallic accents on the exterior. Keep glue areas clear and avoid hinges, seams and creases unless tested. For relief, confirm the wrap or board construction, reverse-side effect and tooling separately.
Matte lamination View effect & artwork guidance
Spot UV View effect & artwork guidance
Gold foil stamping View effect & artwork guidance
Embossing View effect & artwork guidance
Illustrative finish samples, not photographs of this product. Final suitability follows the confirmed stock, construction and approved sample.
Compare all surface finishes
Details that change the finished product
Inspect the structure, wrap and contents fit
Locate the bottle without loading its neck
Provide the actual bottle or a dimensioned drawing, filled weight and orientation. Design the insert around support points rather than squeezing the label.
Bottle configuration
A presentation finish is separate from the cushioning needed during transport. A structural sample checks fit, opening, erection and the insert with the actual contents.
Surface and finishing compatibility
Printed wraps and foil can support presentation; a shipping carton and route testing remain separate. Board forms the shape; the wrap carries artwork and folds over its edges. Board thickness and wrap seams both affect usable space. Inspect a fully wrapped box, including the inner corners and lid fit.

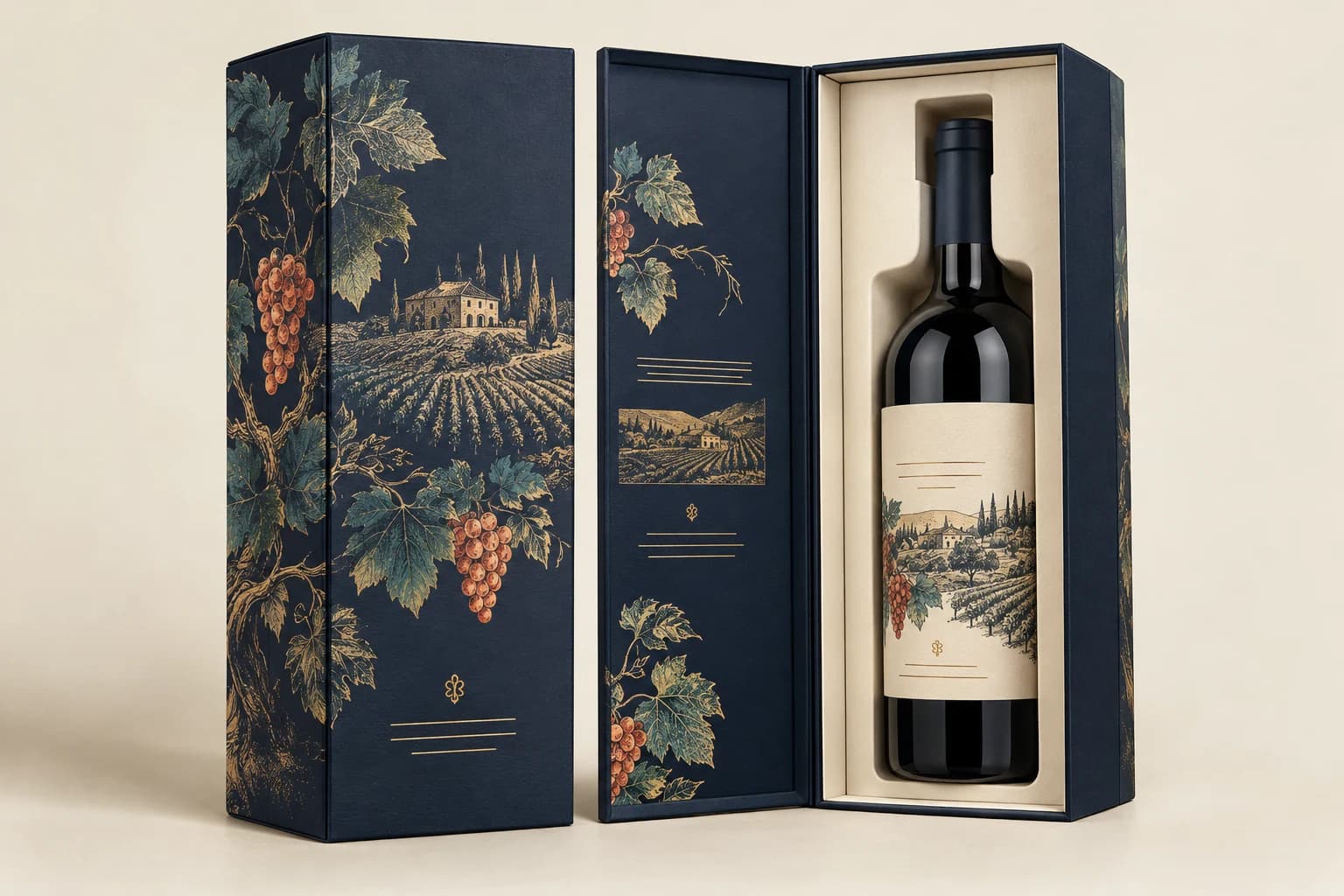

Single-Bottle Gifts & Multi-Bottle Presentations
Single-bottle gift
Fit body, shoulder and cap using the actual filled bottle.
Multi-bottle presentation
Specify dividers and separation; transport protection requires its own assessment.
Solve the risk before production
Check Bottle Movement, Neck Restraint & Base Support
The critical finished-product check
A bottle can move and strike the case if only its body width was specified. Check neck restraint, base support and removal on the packed sample.
Bottles collide inside the pack
Why it happens: Partitions restrain the body but leave the neck or base free to move.
Fix and check: Test the filled pack with the actual bottle shape and verify restraint at its contact points.
When to choose another format
Wine Presentation Boxes, Paper Tubes & Kraft Packs
| Alternative | Use and trade-off |
|---|---|
| Paper Tube Packaging | A single cylindrical presentation may suit one bottle, with separate base and cap checks. |
| Kraft Box Printing | A corrugated kraft construction can serve a different protective role; define the transit requirements. |
Sample and approval
Test the Wine Box with the Filled Bottle Configuration
Free samples are available, with preparation completed within 15 days. Confirm the sample scope; courier arrangements and transit time are separate.
Structural sample
Checks dimensions, fit and assembly using unprinted or representative materials. It does not establish final color.
Printed proof
Checks text, image reproduction and artwork on the agreed proof medium. It may not reproduce final assembly or every finish.
Complete finished sample
A structural sample checks fit, opening, erection and the insert with the actual contents.
From brief to delivery
Order Details for Wine Box Printing
Build and approve the order in five steps
Send the project brief
Send bottle dimensions, filled weight, bottle count and presentation or transit purpose. Include finished dimensions, quantity by version, destination and required arrival date. If a configuration is undecided, describe the intended use.
Compare the quoted configuration
Compare the same quantity basis: complete packs per structure, size and artwork version. Check that the quote identifies materials, finishing, included components, sample scope, packing and freight.
Approve the appropriate sample
A structural sample checks fit, opening, erection and the insert with the actual contents. A print proof checks artwork and color; a complete finished sample also checks assembly. Record what the selected sample does and does not reproduce.
Confirm files and release production
Approve the final artwork revision and the bottle configuration specification. Record the agreed quantity, payment conditions, packing and production schedule in the order.
Confirm packing and dispatch
State flat or erected delivery, inserts per box, protection between finished surfaces and carton counts. Confirm production completion and transit as separate dates, using the delivery destination and required arrival date.
- Use the approved vector dieline at 1:1 scale, with cut, crease and glue areas on separate named layers. Mark inside and outside dimensions explicitly.
- Extend edge-to-edge trim artwork by 3 mm unless the approved template specifies a different bleed. Use approximately 300 effective ppi for continuous-tone images at their placed size; keep fine linework as vectors where possible.
Project questions
Planning Wine Box Printing
Can one box fit different bottle shapes?
Only if the usable cavity and insert are designed for the stated range. Supply dimensions or physical references for each bottle shape. A shared nominal capacity does not guarantee the same diameter, shoulder or closure height.
How should I specify quantities and versions?
Count complete packs per structure, size and artwork version. State bottle dimensions, filled weight, bottle count and presentation or transit purpose; components, language versions and different structures must be listed separately.
What determines the minimum quantity and delivery schedule?
The selected stock, construction, finishing, version count and sample scope determine production planning. Request quantity breaks for the same configuration and an arrival-date plan that separates sampling, manufacturing and transit. No minimum or lead time is implied by the design examples above.
Specify the finished product.
Send bottle dimensions, filled weight, bottle count and presentation or transit purpose. Include finished dimensions, quantity by version, destination and required arrival date.
